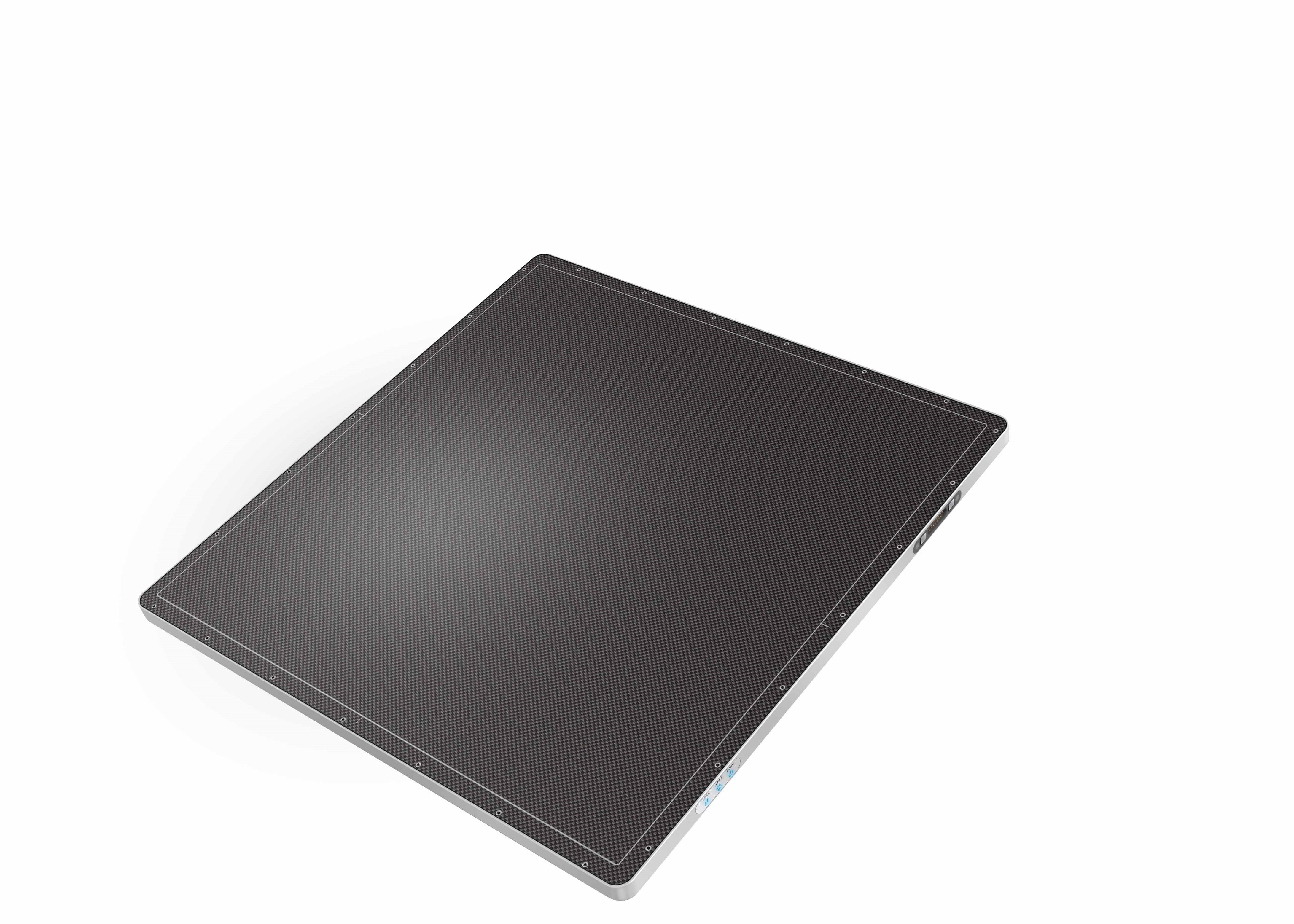

Black 14*17 Digital Flat Panel Detector 2.9KG 20W Full AED Control

Brand Name : MSL

Model Number : FP14

Certification : CE

Place of Origin : Guangdong, China

MOQ : Negotiation

Price : Negotiation

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000 sets per month

Delivery Time : 2~5 days

Packaging Details : Carton box, wooden pallet

Scintillator : CSI / GOS

Detector technology : Amorphous silicon

Image size : 35*43cm(14*17in)

Pixel matrix : 2560*3072

Pixel pitch : 140 μm

A/D conversion : 16 bits

Contact Now

14*17 Black Wired Csl High Efficiency Digital Flat Panel Detector

Quick details

Dimesion 285*340*15

Weight 2.9KG

Operating temperature 5-35℃

Storage & Transport temperature -10-55℃

Operating humidity 30%-80%

Power consumption 20W

Data transmission GigE

Trigger mode Inner

Perview image time 3.5 seconds

Full image time 7.5 seconds

Product description

- Best-in-class 100μm pixel pitch with 16-bit ADC for more image details

- Direct depositoon Cls, with excellent DQE at all frequencies

- Full AED control, exposure at any time

Product specification

Static loading	300kg uniformly
Ingress protection	IP56
Operating temperature	3 Hours
Input power	10-35℃
Storage & Transport temperature with package	-20-60℃
Operating humidity	5-90% (Non-condensing)

Product advantages

MSLFP14 is a high performance, box size flat panel probe tester. Unique cable transmission technology, can be in 1 second. Completea pair of full resolution image transmission, detector with high DQE, high resolution and other excellent qulity probe. The device is equipped with high sentitive AED module, which can be easily connected with high voltage generator linkage.

Black 14*17 Digital Flat Panel Detector 2.9KG 20W Full AED Control

Product Tags:

14*17 Digital Flat Panel Detector

2.9KG Digital Flat Panel Detector

20W Flat Panel Digital Detector

Black 14*17 Digital Flat Panel Detector 2.9KG 20W Full AED Control Images
