Wired X Ray Digital Flat Panel Detector IP54 3.4Lp/Mm CSL / GOS

Brand Name : MSL

Model Number : MSLPBT03

Certification : CE

Place of Origin : China

MOQ : 1

Price : USD 3000-8000 / set

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000 sets / month

Delivery Time : 7 working days

Packaging Details : 65*27*62

Product Name : 17*17 wired DIGTAL flat panel detector

color : black AND white

Computer Workstation : Processor I3，Memory 4G，Hard disk 500G

Scintillator : CsI

Active area : 428*428 mm

Pixel : 3072*3072 pixels

Imaging time : 5 seconds

Preview time : 3 seconds

Contact Now

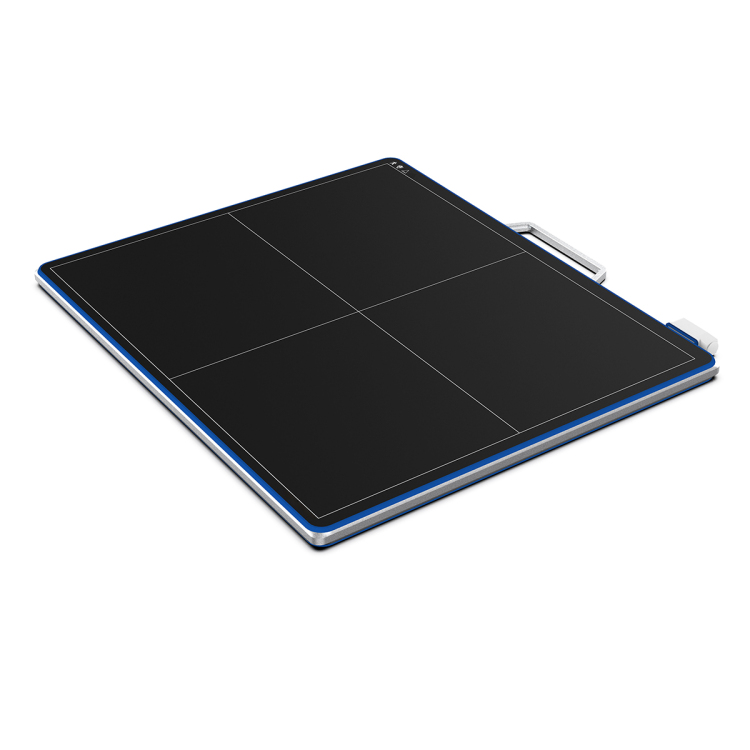

17*17 CsI / GOS 140 μm Wired X Ray Digital Flat Panel Detector

Product Description

Smart-DR is a quality image acquisition and processing software wh ich was independently designed and researched by MSL. It has obtained a number of computer copyrights issued by the National Copyright Administration and passed the IHE test organized by the Chinese Medical Equipment Association. And the compatibility reaches international standards.

Product features

1. Stable and reliable performance, excellent image resolution and fast image reviewing.

2. Independently developed DROC workstation with variety advanced & exclusive clinical applications available.

3. Easily supporting & convenient remoting software upgrading and life-time free upgrading.

4. High sensitive AED function available.

Product specification

Scintillator type	CSI/GOS
Image Sensor	a-Si(Amorphous Silicon) TFT
Active area size	428*428 mm ±0.5
Active area pixel	3072*3072 Pixels
Pixel size	140 μm
Spatial resolution	3.4 Lp/mm
Imaging time	5 seconds
Preview time	3 seconds
Dimension	46246216 mm ±0.5
Weight	4.1kg ±0.05
