16bit 40kv - 150KV Digtal X Ray Flat Panel Detector 17 x 17 inch

Brand Name : MSL

Model Number : MSLCV07

Certification : CE

Place of Origin : China

MOQ : 1

Price : USD 3000-9000 / set

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000 sets / month

Delivery Time : 7 working days

Packaging Details : 57*18*59

Product Name : 17 x 17 inch 40KV- 150 KV DIGTAL x-ray flat panel detector

color : black

Active area : 17 x 17 inch

Pixel matrix : 3072 x 3072

Pixel pitch : 140μm

Gary scale : 16 bit

Preview image time : 3 seconds

Imaging time : 5 seconds

Contact Now

17 x 17 inch 40KV- 150 KV DIGTAL x-ray flat panel detector

Product Description

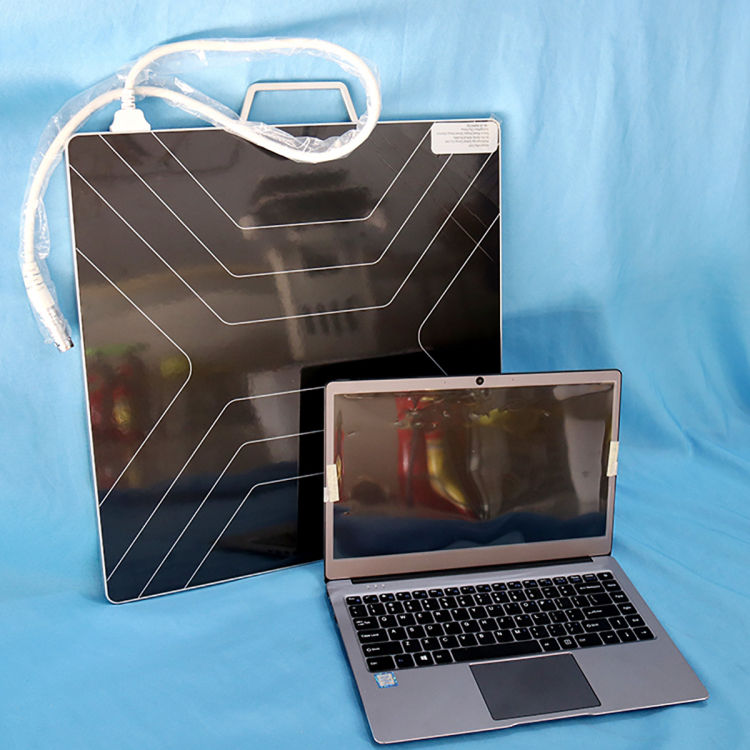

MSLCV07 is a 17*17 inch wired digital flat panel detector with new technology which could save cost to the minimum. It's newly released in 2021 for rediology room. It's compatible with most of the digital x-ray machine nowadays. The big size of 17 * 17 inch can meet most requirment in daily diagnosis.

Product Feature

Mobile and portable : Ultra-light , ultra-thin, with handle easy move

Stable and reliable : waterproof , anti-fall, high bearing strength

Superior performance : needle like CSI scintillator , high sensitivity , high MTF , hight DQE

Product Specification

Item	Specification
Detector technology	Amorphous silicon
Scintillator	CSI
Active area	17 x 17 inch
Pixel matrix	3072 x 3072
Pixel pitch	140μm
Gary scale	16bit
Ghost	No ghost
Artifact	No artifact
Spatial resolution	3.4LP/mm
Preview image time	< 3S
Imaging time	5S
KV range	40KV ～ 150 KV
Data interface	1000M Ethernet
Power	17W
Power supply	Input :AC100V ～ 240V / 50～60Hz Output: DC15V
Size	460mm x 460mm x 15mm

16bit 40kv - 150KV Digtal X Ray Flat Panel Detector 17 x 17 inch
